Retaining Wall Drainage & Subsoil Systems for Newcastle, NSW

Ag-drain, gravel and geofabric drainage behind every wall - the structural detail that stops failures on Newcastle's coal-measures shale and clay.

Try the cost calculator

A retaining wall Newcastle homeowners can rely on

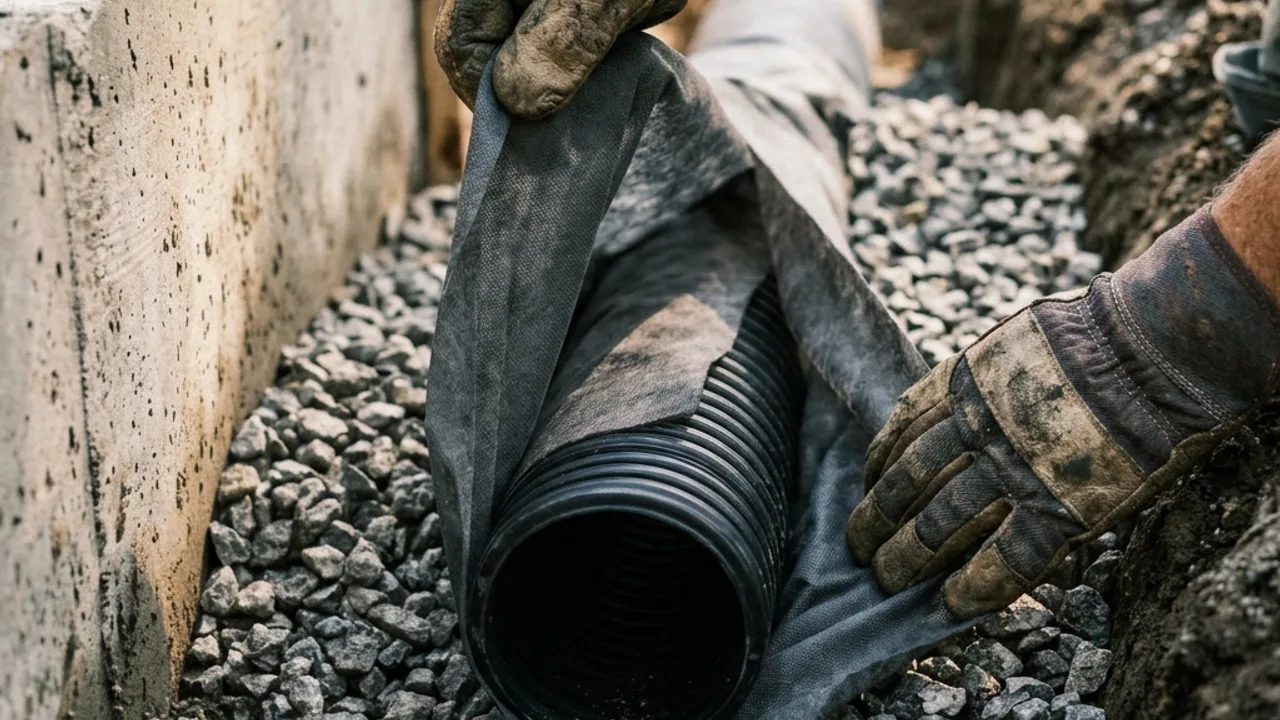

Water pressure behind a retaining wall is the leading cause of failure, and on Newcastle's coal-measures shale and clay suburbs, drainage is not optional - it is structural. A proper system runs agricultural drainage pipe in graded gravel at the wall base, wraps the gravel in geofabric so clay backfill does not clog it, and connects to the site's approved stormwater system. Whether you are building a new wall or trying to work out why an existing one is bulging or leaning, drainage is usually the first thing worth assessing properly.

Who this is for: Suits every new retaining wall build, and anyone with an existing wall showing bulging, leaning or water-pooling symptoms.

What's included

Agi pipe and gravel drainage installation at the wall base

Geofabric filter wrapping to keep the drainage line clear

Stormwater connection to the site's approved system

Retrofit drainage assessment for an existing, failing wall

Weep hole and drainage-outlet placement along the wall face

Indicative cost

Drainage is usually priced as part of the wall build rather than as a separate line item on a new job, but retrofitting drainage behind an existing wall is its own scope of work - typically involving excavation behind the wall face, so cost depends heavily on wall height and access. your licensed contractor will always separate this out clearly in a written quote so you know exactly what you're paying for.

What matters on Newcastle sites

This matters more in Newcastle than in a lot of other places, because so much of the region sits on coal-measures shale and mudstone that weathers into moisture-sensitive clay. Coastal suburbs like Stockton add a second factor - shallow groundwater and salt exposure - so the drainage detail (and the materials used in it) genuinely differs depending on which part of Newcastle you're in.

How it works

Step 1

Enquire

Tell us whether this is new-build drainage or a retrofit on an existing wall.

Step 2

Your Contractor

A licensed local contractor who treats drainage as core structural work quotes and contracts with you directly.

Step 3

Discuss

The contractor assesses the water path behind the wall and what the fix genuinely needs.

Step 4

Quote

You receive a written, itemised quote before any work begins.

Why choose this approach for retaining wall drainage & subsoil systems

The genuine expertise signal

Drainage is where a properly built wall is separated from one that fails in a few years - we treat it as the main event, not an add-on.

Matched to Newcastle's ground

Coal-measures shale and clay suburbs need this more than sandy or rocky ones - we explain why for your site.

Root-cause repairs

For an existing wall, we look at drainage first rather than jumping straight to a rebuild.

Reading a wall that is already telling you something

An existing wall usually gives warning before it gives way, and the symptoms point at different causes. A wall bulging in the middle of a run while the ends stay put is the classic water-pressure signature, and that is a drainage problem before it is a structural one. A wall that has tipped forward as a whole unit while staying straight is more often a footing or embedment issue. Damp patches, efflorescence staining or moss on the face tell you water is passing through the wall rather than around it, which means the drain behind it has either clogged or was never connected to anything. Ground that stays soft above the wall long after the rest of the yard has dried is the same message from the other side.

Retaining Wall Drainage & Subsoil Systems FAQs

How do I stop water from pooling behind my retaining wall?

Preventing water pooling involves installing proper subsoil drainage such as slotted ag-pipe, free-draining gravel backfill and suitable outlets away from structures. In heavy clay soils around Newcastle, builders often pay extra attention to creating a fall for the pipe and avoiding blocked exit points. Retrofitting drainage to an existing wall can sometimes be done by installing new pipes and relieving some backfill. Persistent water issues are best assessed on site because they can affect stability.

Can my failing retaining wall be repaired or does it need replacing?

If a retaining wall is only showing minor movement, cracking or rot, some targeted repairs like additional drainage, new posts or partial rebuilds may stabilise it. Where a wall is significantly leaning, bowing or has poor foundations, contractors often recommend full replacement as patching is unlikely to be safe long term. Materials like older timber may be more cost-effective to replace than reinforce. An on-site assessment by a structural professional is usually the safest way to decide.

How much should I budget for a small garden retaining wall?

A short, low timber garden wall can sometimes be done for under about $1,000 in materials and labour. On the per-square-metre rates used elsewhere on this site, a 5 metre timber wall half a metre high is 2.5 square metres of wall face and lands near $360 to $810 in materials and labour alone. Once excavation, proper drainage and disposal are added, a typical small project more commonly sits in the $2,000 to $3,000 range.

Do I need council approval for a retaining wall in NSW?

Whether approval is needed usually depends on the wall's height, location and whether it affects drainage or supports a structure. In NSW, taller or more complex walls often need engineering and may require council assessment, so checking before work starts is standard practice.

Retaining Wall Drainage & Subsoil Systems across Newcastle

Pick your suburb for the local notes, or submit the form for a free review.

Merewether Exposed sandy escarpment blocks behind the beach, where salt and wind narrow the sensible material list. The Hill Cut terraces under heritage frontages, where sandstone is the streetscape and matching it matters. Cooks Hill Narrow terrace lots off Darby Street, so hand-built and restricted-access retaining is the usual answer. Hamilton Gentle falls on Federation and interwar blocks near the rail corridor, mostly low garden and driveway walls. Mayfield Older cut-and-fill blocks on reactive coal-measures clay out toward the river flats past Maitland Road. Wallsend Shallow historical coal workings west of the city, so footing depth and drainage both get extra care. Adamstown Undulating Federation cottage streets off Glebe Road, where boundary and driveway walls dominate the work. Kotara Split-level blocks on the ridge around Westfield, where the driveway cut usually sets the wall height. New Lambton Leafy sloping blocks near John Hunter, where the older timber sleeper walls are reaching end of life. Waratah Narrow blocks and ageing retaining stock close to the rail line, with tight access off Turton Road. Broadmeadow Gently graded residential streets between the stadium and racecourse, mostly modest boundary retaining. Carrington Low-lying reclaimed fill beside the working port, where drainage is the main design factor, not height. Stockton Beach sand and salt exposure across the harbour, which drives material choice more than retained height. Newcastle East Sandstone headland cut terraces near the ocean baths, where retaining is part of the built heritage. Newcastle West CBD-fringe terraces on retained cut blocks around the interchange, hemmed in by redevelopment sites.
